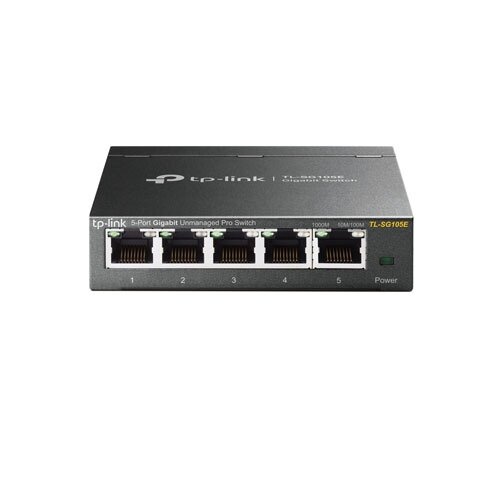

TL SG105E 5-port Gigabit Smart Switch, TP-Link

Product Features

• 5 × 10/100/1000 Mbps ports provide instant large file transfers
• Innovative energy-efficient technology reduces power consumption by up to 57%
• IEEE 802.3x flow control ensures reliable data transfers
• 15K jumbo frame improves performance for large data transfers
• Effective network monitoring via Port Mirroring, Loop Prevention, and Cable Diagnostics
• QoS (Port-based / 802.1p / DSCP) enables smooth latency-sensitive traffic
• Rich VLAN features improve security through traffic segmentation
• IGMP Snooping optimizes multicast applications
• Web-based UI and management utility simplify configuration

Product Specifications

Hardware Features

• Standards and protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p
• Interface:
  • 5 × 10/100/1000 Mbps RJ45 ports
  • AUTO Negotiation / AUTO MDI/MDIX
• Network media:
  • 10BASE-T: UTP Cat 3/4/5 (max 100 m), EIA/TIA-568 100? STP (max 100 m)
  • 100BASE-TX: UTP Cat 5/5e (max 100 m), EIA/TIA-568 100? STP (max 100 m)
  • 1000BASE-T: UTP Cat 5/5e/6 or above (max 100 m), EIA/TIA-568 100? STP (max 100 m)
• Fan quantity: Fanless
• Power supply: 100–240 VAC, 50/60 Hz
• Power consumption: Max 2.49 W (220 V / 50 Hz)
• Dimensions: 100 × 98 × 25 mm

Performance

• Packet forwarding rate: 7.4 Mpps
• MAC address table: 2K
• Packet buffer memory: 1.5 Mb
• Jumbo frame: 15 KB

Software Features

Quality of Service (QoS)

• Port-based / 802.1p / DSCP priority
• 4 priority queues
• Rate limit
• Storm control

L2 Features

• IGMP Snooping V1/V2/V3
• Link aggregation
• Port mirroring
• Cable diagnostics
• Loop prevention

VLAN

• Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU / Port / Tag VLAN

Other

• Transmission method: Store-and-Forward

Others

• Certifications: FCC, CE, RoHS
• Package contents:
  • TL-SG105E
  • Power cord
  • Installation guide
  • Resource CD
  • Rubber feet
• System requirements: Microsoft Windows (to run the utility)
• Environment:
  • Operating temperature: 0–40 °C (32–104 °F)
  • Storage temperature: ?40–70 °C (?40–158 °F)
  • Operating humidity: 10%–90% non-condensing
  • Storage humidity: 5%–90% non-condensing
• Notes:
  • Web-based UI applies to V2 and later versions
  • DSCP QoS applies to V2 and later versions
