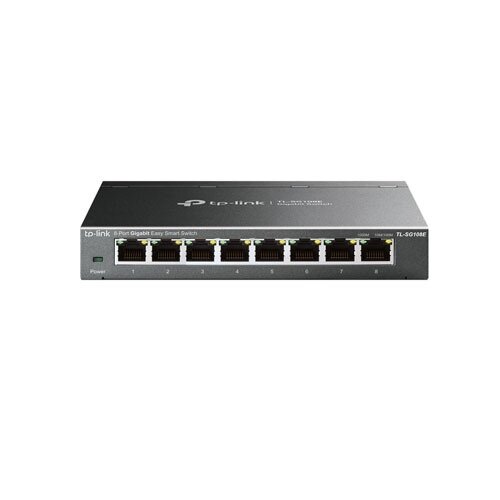

TL SG108E 8-port Gigabit Smart Switch, TP-Link

Product Features

Overview

• TP-Link Unmanaged Pro Switches are ideal upgrades from basic unmanaged switches for SOHO networks
• Easy configuration via web-based user interface and management utility
• Traffic monitoring with Port Mirroring, Loop Prevention, and Cable Diagnostics
• QoS (Port-based / 802.1p / DSCP) ensures smooth, low-latency voice and video traffic
• VLAN support (MTU / Port / 802.1Q) improves security and network segmentation
• Energy-efficient Green technology for eco-friendly networking

Easy to Use

• AUTO MDI/MDIX eliminates the need for crossover cables
• AUTO Negotiation automatically adjusts link speed for optimal performance
• Simple deployment for home and office environments

Durable Metal Casing

• High-quality metal casing protects internal components
• Reliable performance backed by rigorous testing
• Compact design ideal for desktop or workbench deployment

Additional Software Features

• Real-time network monitoring
• Port Mirroring, Loop Prevention, and Cable Diagnostics for fast troubleshooting
• QoS prioritization ensures clear voice and video applications
• MTU VLAN, Port-based VLAN, and 802.1Q VLAN support

Go Green with Your Ethernet

• Automatic power adjustment based on link status and cable length
• Lower power consumption and reduced carbon footprint

Product Specifications

Hardware Features

• Standards and protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p
• Interface:
  • 8 × 10/100/1000 Mbps RJ45 ports
  • AUTO Negotiation / AUTO MDI/MDIX
• Network media:
  • UTP Cat 3/4/5/5e/6 (up to 100 m)
  • EIA/TIA-568 100? STP (up to 100 m)
• Fan quantity: Fanless
• Power supply: External power adapter (9 VDC / 0.6 A)
• Dimensions: 158 × 101 × 25 mm
• Max power consumption: 3.6 W
• Max heat dissipation: 12.1 BTU/h

Performance

• Switching capacity: 16 Gbps
• Packet forwarding rate: 11.9 Mpps
• MAC address table: 4K
• Packet buffer memory: 1.5 Mb
• Jumbo frame: 15 KB

Software Features

• QoS: Port-based / 802.1p / DSCP priority with 4 queues
• Rate limit and storm control
• L2 features: IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring
• Cable diagnostics and loop prevention
• VLAN: Up to 32 VLANs (MTU / Port / Tag VLAN)
• Transmission method: Store-and-Forward

Others

• Certifications: FCC, CE, RoHS
• Package contents:
  • TL-SG108E
  • Power cord
  • Installation guide
  • Rubber feet
• Environment:
  • Operating temperature: 0–40 °C (32–104 °F)
  • Storage temperature: ?40–70 °C (?40–158 °F)
  • Operating humidity: 10%–90% non-condensing
  • Storage humidity: 5%–90% non-condensing
