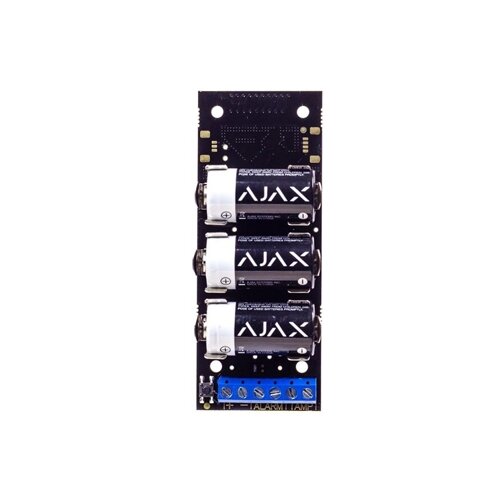

Transmitter AJAX

Ajax Transmitter

Wireless integration module that allows third-party wired detectors to be connected to the Ajax security system, converting wired alarm signals into Jeweller wireless communication.

Main Features:

• Jeweller wireless communication protocol — range up to 1600 m (line-of-sight)
• Supports connection of third-party wired detectors (NC/NO)
• Alarm, tamper, and power supply monitoring
• Configurable input types and alarm logic via Ajax apps
• Built-in accelerometer for tamper protection
• External power supply input: 7–24 V DC
• Backup battery: 3 × CR123A batteries
• Compact enclosure for installation inside detector housings or junction boxes
• Operating temperature: -10 C to +40 C

Notes:

• Designed to integrate existing wired detectors into Ajax systems
• Installation must be carried out by certified Ajax partners
