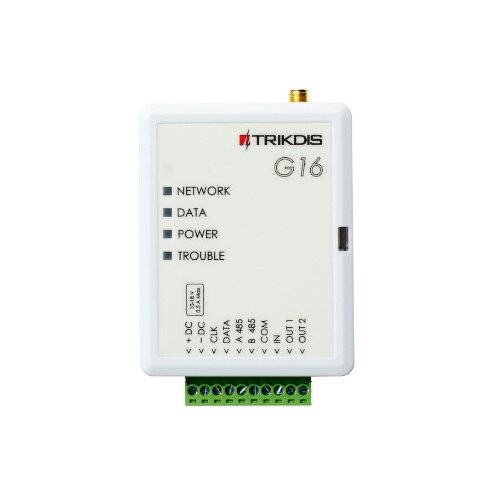

TX G16, GSM communicator, White, TRIKDIS

GSM communicator G16 (2G) without antenna is designed for transmitting alarm system event messages to a monitoring station or users via GSM/GPRS communication.

• Communication: 2G GSM/GPRS networks, 850 / 900 / 1800 / 1900 MHz frequencies
• Event transmission: sends alarm system events to a monitoring station receiver and users
• Transmission protocols: TRK, DC-09_2007, DC-09_2012
• Security: AES 128 message encryption
• Compatibility: connects to an alarm control panel via data or keypad bus
• Inputs and outputs: 1 selectable NC/NO input and 2 OC type outputs
• Memory: up to 60 messages
• Configuration: via TrikdisConfig software, USB Mini-B port or remotely by SMS
• Power supply: 10–18 V DC
• Current consumption: 60–100 mA on standby, up to 250 mA while sending data
• Operating environment: temperature from -10 °C to +50 °C, relative humidity up to 80 % at +20 °C
• Housing: compact plastic enclosure, dimensions 92 × 65 × 26 mm
• Note: antenna is not included and must be ordered separately
