  •   TX G16T, GSM communicator, White, TRIKDIS

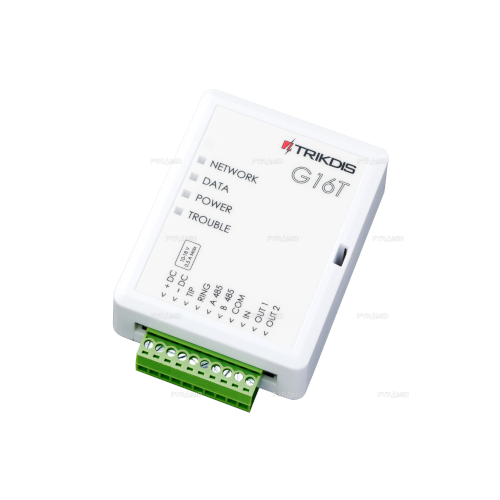

    TX G16T, GSM communicator, White, TRIKDIS

    Code: 3310
    Inquire about this item
    11616 €
    Out of stock.
    Contact us
    In stock: 0 pcs
    • Universal TIP/RING interface for connection to an alarm panel telephone dialer
    • Simulates a PSTN phone line and captures events in Contact ID or SIA format
    • Event transmission over 4G LTE with 2G backup communication
    • Sends events to a monitoring station and the Protegus 2 app
    • Real-time Push notifications for security system events
    • Remote arm / disarm control via PGM output or DTMF simulation
    • Supported transmission protocols: TRK, DC-09_2007, DC-09_2012
    • AES 128 encryption for secure message transmission
    • 2 programmable inputs supporting NC, NO, EOL and DEOL types
    • 1 OC type output, up to 0.15 A DC, max. 30 V
    • Internal memory for up to 60 event messages
    • Configuration via TrikdisConfig software, USB Mini-B or remotely
    • Power supply: 10–18 V DC
    • Current consumption: 60–100 mA in standby, up to 250 mA while sending data
    • Operating temperature: -10 °C to +50 °C
    • Compact housing: 92 × 65 × 26 mm
