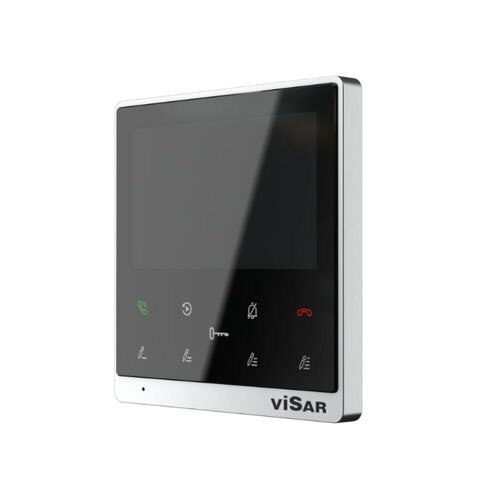

VSI ME1104WD, Mini Monitor for Intercom Systems, ViSar

The VSI ME1104WD is a compact indoor IP video intercom monitor featuring a 4.3-inch IPS touchscreen, built-in WiFi connectivity and PoE support. Designed for residential and commercial applications, it enables live video monitoring, visitor communication and remote door control through a modern and intuitive interface.

Main features:

• Display: 4.3-inch IPS capacitive touchscreen with 480 × 272 resolution.
• Connectivity: 10/100 Mbps Ethernet and built-in 2.4 GHz WiFi.
• Live monitoring: Supports live preview from door stations and linked IP cameras.
• System capacity: Supports up to 16 linked door stations/IP cameras and up to 6 indoor stations in the same room.
• Audio: Built-in microphone and speaker with noise suppression and echo cancellation.
• Recording: Captures images and records videos during calls when a microSD card is installed.
• Storage: Built-in microSD card slot supporting cards up to 256 GB.
• Alarm interface: 2 alarm inputs and 1 alarm output.
• Custom controls: Four programmable touch shortcut buttons and customizable door unlock password.
• Power supply: IEEE 802.3af PoE or 12 V DC.
• Installation: Compact wall-mounted design suitable for homes, apartments and offices.

Notes:

• Supports Do Not Disturb mode for increased privacy.
• Compatible with VISAR IP video intercom systems.
• Video recording and snapshot functions require a microSD card.
