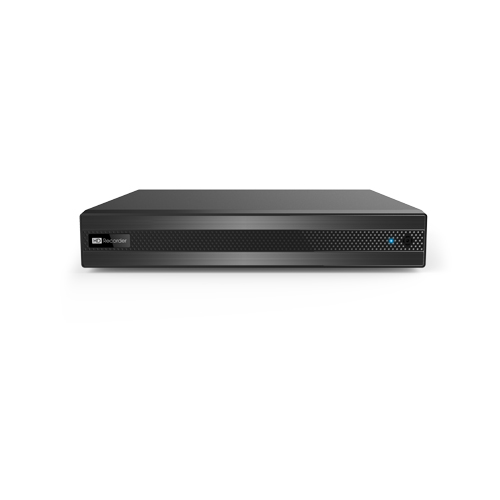

VSN T6104b1b Video recorder 4 channels, recording up to 6MP, 1HDD up to 10TB

The VSN T6104b1b is a 4-channel network video recorder (NVR) designed for small to medium-sized IP surveillance systems. It supports high-definition camera recording, real-time playback, and remote management, combining efficient H.265+ compression with reliable data storage and smart search functionality.

Main features:

• Video input: Supports up to 4 IP cameras with resolutions up to 8 MP per channel.
• Recording bandwidth: Up to 60 Mbps total incoming bandwidth for smooth multi-camera streaming.
• Compression formats: H.265+, H.265, H.264+, and H.264 for optimized storage and transmission.
• Display output: 1× HDMI and 1× VGA, both supporting 1080p display output.
• Playback: Synchronous playback for up to 4 channels; smart search and event filtering for quick retrieval.
• Storage: 1× SATA interface supporting up to 10 TB HDD; USB 2.0/3.0 backup available.
• Network: 1× RJ45 (1000M) port; ONVIF-compliant for broad camera compatibility.
• Audio I/O: 1× input, 1× output for two-way communication.
• Smart functions: Motion detection, intrusion, line crossing, and AI event support (depends on camera capability).
• Remote access: Web browser, CMS software, or mobile app (iOS / Android) with P2P and cloud connectivity.
• Power supply: DC 12 V / 2 A, low power consumption design.
• Construction: Compact metal housing; dimensions approx. 260 × 230 × 45 mm.
• Operating conditions: -10 °C to +55 °C, <90% relative humidity (non-condensing).

Notes:

• Ideal for small office, retail, or residential surveillance systems.
• Compatible with VISAR, ONVIF, and third-party IP cameras.
• Supports cloud connection, email alerts, and remote playback via mobile application.
