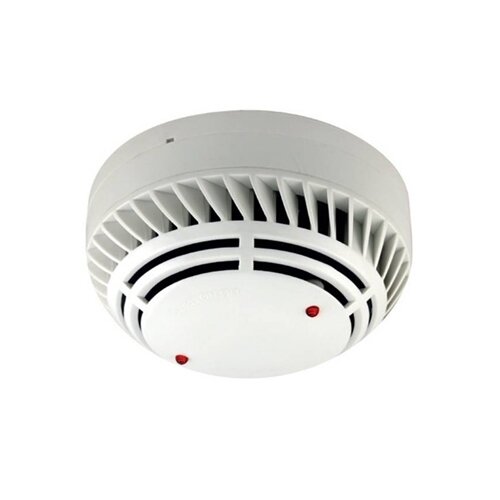

ZEOS C SH, Multisensor Smoke and Heat Fire Detector

  • ZEOS C SH, Multisensor Smoke and Heat Fire Detector

    Code: 00748
    Manufacturer
    GFE
  • Supply voltage: 10-30 V DC
    Current: 33 uA
    Current in alarm: 24 mA - Alarm LEDs
    Contacts for remote indicator: Yes
    Sensitivity: According to EN54-5 or/and EN54-7
    Cable size: 0.5-2.5 mm²
    Reset/Start-up time: 20 seconds max.
    Max. humidity: 95% RH Non-Condensing
    Operational temperature: 0°C to 50°C
    Color: White
    Dimensions: 100 mm (D) x 50 mm (H)
    Weight: 144 g inc. base
