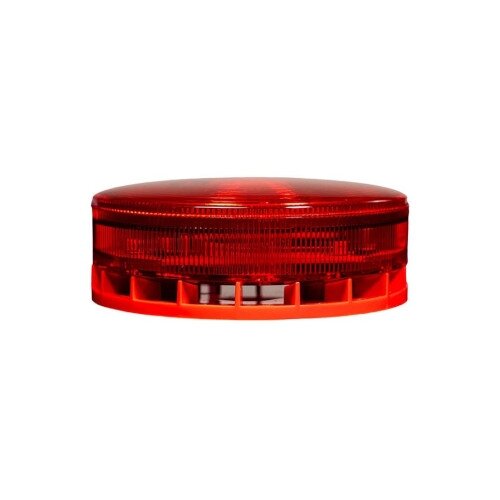

VULCAN 2 ASB RED Adresinė sirena su blykste, raudona

VULCAN 2 AS RED

Addressable red base sounder for GFE addressable fire detection systems, designed to provide clear audible alarm indication in indoor applications.

Main features:

• Addressable base sounder for indoor fire alarm systems
• Compatible with GFE addressable control panels
• Loop powered: 20–30 V DC
• High sound output up to 97 dB @ 1 m
• Low current consumption: 430 µA in standby
• Alarm current depends on selected tone: 2.5–5 mA
• Selectable alarm tones: sweeping, alternating high-frequency, continuous, and alternating low-frequency
• Field-configurable Normal, Shadow or Auxiliary sounder modes
• Address setting via DIL switches
• Volume adjustment by integrated potentiometer
• Maximum cable size: 0.5–2.5 mm²
• Start-up / reset time: up to 20 seconds
• Red ABS housing with optional lid
• Protection rating: IP21C, Type A, for indoor use
• Operating temperature: -10 °C to +55 °C
• Maximum humidity: up to 95% RH, non-condensing
• Dimensions: 100 mm diameter × 50 mm height including base
• Weight: 144 g with lid

Notes:

• This model is the sounder-only version without beacon or integrated isolator
• Installation and commissioning should be carried out by a qualified fire alarm specialist
